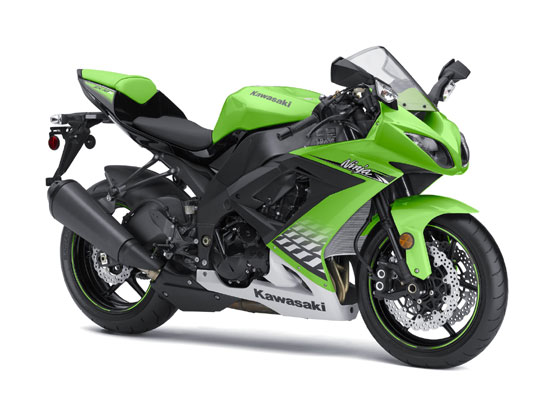

Supersport 2010 Kawasaki Ninja ZX-10R Specifications


Supersport 2010 Kawasaki Ninja ZX-10R Specifications | Reviews

ENGINE 2010 Kawasaki Ninja ZX-10R:
Type Liquid-cooled, 4-stroke In-Line Four
Displacement 998 cc
Bore and Stroke 76.0 x 55.0 mm
Compression ratio 12.9:1
Valve system DOHC, 16 valves
Fuel system Fuel injection: ø43 mm x 4 (Keihin) with oval sub-throttles, dual injection
Digital Ignition
Electric Start
Lubrication Forced lubrication, wet even with oil cooler

Drivetrain
Transmission 6-speed, return
Final Drive Sealed chain
Primary reduction ratio 1.611 (87/54)
Gear ratios: 1st 2.600 (39/15)
2 2.053 (39/19)
3 1.737 (33/19)
4 1.550 (31/20)
5 1.400 (28/20)
6 1.304 (30/23)
Final reduction ratio 2.412 (41/17)
Wet multi-disc clutch, manual

FRAME 2010 Kawasaki Ninja ZX-10R
Type Backbone / Twin-tube, aluminum (Pressed / die-cast composite structure)
Wheel Travel: Front 120 mm
Wheel travel: 125 mm Rear
Tires: Front 120/70ZR17M/C (58W)
Tires: Rear 190/55ZR17M/C (75W)
Casters (Rake) 25.5 º
Trail 110 mm
Steering Angle (left / right) 27/27 º

SUSPENSION 2010 Kawasaki Ninja ZX-10R
Front: 43 mm inverted fork type with DLC coating, re-bound and compression damping, spring preload adjustability and top-out springs
Rear: Bottom-Link type Uni-contract with the gas-filled shock and top-out spring
Compression damping Stepless, dual-range (high / low speed)
Stepless Rebound damping
Spring preload Fully adjustable

Brake 2010 Kawasaki Ninja ZX-10R:
Rear: Type Single 220 mm petal disc
Front: Type Dual semi-floating 310 mm petal disc, 10-button aluminum rotor carrier
Front: Caliper Dual radial-mount, opposed 4 - (aluminum) piston
Rear: Single-bore pin-slide Caliper, aluminum piston

DIMENSIONS 2010 Kawasaki Ninja ZX-10R:
Overall Length 2110 mm
Overall Width 710 mm
Overall Height 1135 mm
Wheelbase 1415 mm
Ground clearance 125 mm
Seat Height 830 mm
Sidewalk 208 kg Mass
17 liter fuel capacity

PERFORMANCE 2010 Kawasaki Ninja ZX-10R:
Maximum power 132.8 kW (181) PS / 11,500 rpm
Maximum Power with Ram Air 141.3 kW (192) PS / 11,500 rpm
The maximum torque of 113 N ° m (11.5 kgƒ · m) / 8700 rpm

DETAILS
MSRP $ 15.999 ($ 16.199 - Special Edition)
Color Metallic Black Spark, Stardust Special Edition Lime Green / Pearl White

12 Month Warranty

Good Times Protection Plan 24 or 36 months (Kawasaki GTPP coverage begins after the warranty expires limited standard)

The specifications mentioned here apply to and have been achieved by production models under standard operating conditions. We only intend to provide a reasonable description of the vehicle and its performance capabilities but these specifications may not apply to every machine supplied for sale. Kawasaki Heavy Industries, Ltd. reserves the right to change specifications without prior notice. Equipment illustrated and specifications may vary to meet individual markets. Available colors may differ by market.
